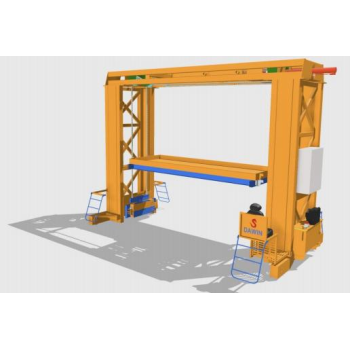

Precast Concrete Pallet Handler
- group name
- Precast Concrete
- Min Order
- 1 set
- brand name
- Saintyol DAWIN Machinery
- model
- SDPH1000
- Nearest port for product export
- Qingdao, Shanghai, Tianjin
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, Westem Union, Cash
- update time
- Tue, 27 Jan 2026 13:51:56 GMT
Paramtents
External Dimension (L*W*H) 6750mm×2970mm×4650mm
Maximum Lifting Height 3200mm
Packging & Delivery
-
Min Order1 set
Briefing
The Pallet Handler is used for the handling and stacking of mold vehicles in prefabricated component precast production lines.
Detailed
1)Function Description
The Pallet Handler is used for the handling and stacking of mold vehicles in prefabricated component production lines. It can achieve smooth lifting and precise positioning of mold vehicles through stacking.
2)Structure Composition

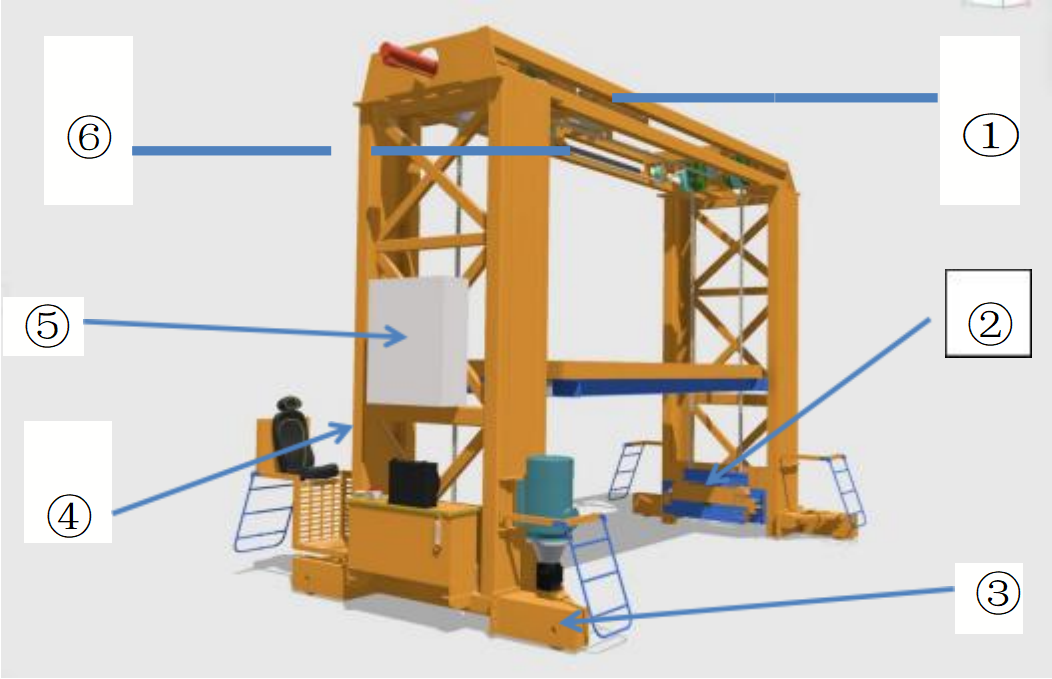

The Pallet Handler consists of a Hydraulic Lifting System, a Flipping and Lifting Conveyor Frame, a Walking System, a Frame Structure, an Electric Control System, a Horizontal Sliding Frame, etc.
Equipped with a stable steel structure frame, used to support the lifting and hoisting system, and the bottom running system achieves precise and free lateral movement on the steel rails.
Equipped with an operating station for worker to use the Pallet Handler and improve efficiency.
