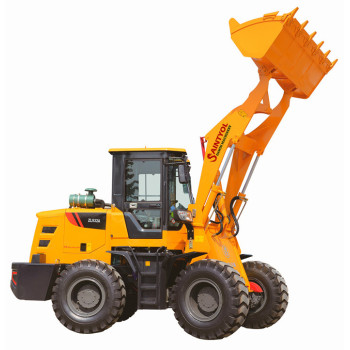

Smaller ZL918E Front End Wheel Loader, Mini Payloaders

group name: Wheel Loaders

Min Order: 1 set

brand name: Saintyol DAWIN Construction Machinery Manufacturer

model: ZL918E

Nearest port for product export: Qingdao, Shanghai, Tianjin

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW

Acceptable payment methods: T/T, L/C, Westem Union, Cash

update time: Wed, 25 Dec 2024 02:49:37 GMT

contact supplier

Paramtents

bucket capacity(m3) 0.6
operating weight(kg) 3500
dumping height(mm) 2900
rated power(kw) 42KW
model of axle Isuz 50

Packging & Delivery

Min Order1 set

Briefing

wheel loader transmission is kind of automatic transmission lifting and withdrawing controlled by Hydraulic Joystick System

Detailed

Instruction:

Wheel Loader is a kind of front wheel loader with single bucket ,articulated and hydraulic unloading. It has been developed and designed in accordance with user requirements, reference models after absorption of domestic and similar structural features and advanced technology.

It is widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is paticularly applied to the narrow space for the loading operation of stone,sand and other construction materials.The main components of the loader are used brand-name manufacturer's products, interchangeability of good, reliable, well-resourced parts.

Pictures:

Main Features:

Main Features

1.Adopting hydraulic-mechanical transmission that can make the best use of engine power, realize automatic continuously variable transmission(CVT) according to the external resistance, avoid engine stall due to the sudden increase in external load, and can also absorb and eliminate the vibration and shock of the external load to the engine to protect the transmission system and the engine and improve the service life of the whole machine, which make the machine easy and comfortable to operate and have higher economical and production efficiency;

2.Adopting central articulated frame and load-sensing hydraulic steering gear that can make the track of rear wheels of the wheel loader coincide with the track of its front wheels when turning to make the turning radius short, which enables it to work on a narrow site and makes it have easy and flexible operation, safe and reliable performance, compact structure and easy maintenance;

3.Adopting four-wheel drive, low-pressure wide-base off-road tire and pendular rear axle that can make the wheel loader have good off-road performance, traffic ability and more traction;

4.Fully enclosed glass cab with adjustable and suspension seat can provide comfortable driving and wide view. Electric Fan is standard configuration. Air-conditioner is optional.

5.Using 16/70-20 big tyres to increase the stability of whole machine and the service life of tyre.

6.Brake system adopts air pump, air over hydraulic caliper disc brake on 4 wheels;

7.This wheel loader adopts YJ265 split type torque converter, and the whole machine is fully hydraulic transmission;

8.This compact wheel loader can be equipped with pilot control system (joystick control )to make it easy to operate and increase the hydraulic performance of the whole machine;

9.Power system adopts HUANGFENG,4102, 75kW, Turbo-charged, Fuel-Efficient, environmentally friendly, 4-cylinder engine to make this compact wheel loader have strong power and high acceleration, which greatly increase its high working efficiency;

10.This compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as hay grapple, grass fork, wood fork, timber grapple, pallet fork, bale grapple, four-in-one bucket, straight snow blade, V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.

Specifications:

Main Parts:

System	model No	918E
performance	overall dimensions(mm)	520016002600
	rated load(kg)	1000
	bucket capacity(m3)	0.6
	operating weight(kg)	3500
	dumping height(mm)	2900
engine	engine model	YN27
	rated power(kw)	42
	type	inline, water cooling, four stroke, direct injection, 4 cyliner
transmissiomn	Gearbox	mechanical
	converter	mechanical
	gear shift	3F2R
	model of axle	Isuz 50
tyre	tyre size	14/90-16
	service braking	oil brake
optional	quich hitch
	AC
	joystick
	pallet fork
	4 in 1 bucket
	logfork
